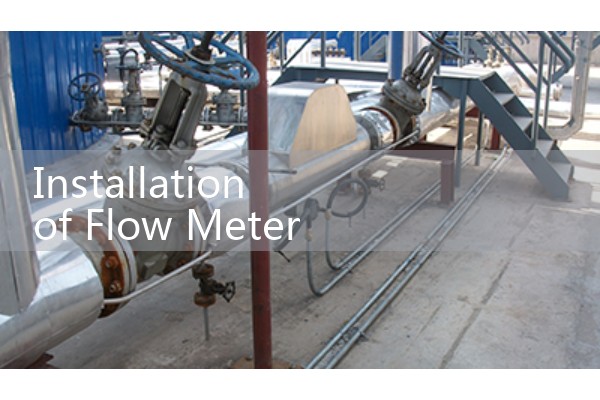

Installation of Flow Meter: Engineering Best Practices for Mechanical Piping and Grounding Alignments
Quick Answer
Most flow meter errors start with pipe stress, wrong straight run, or poor grounding. Install the meter with matched flange alignment, correct upstream and downstream pipe length, and a dedicated earth path for electromagnetic types. Silver Automation Instruments supplies flow meters for water, oil, gas, chemical, food, and marine processes. Send your pressure in bar, temperature in degrees Celsius, pipe size in DN, and flow range for a quote.
Why Mechanical Piping Alignment Decides Meter Accuracy
Engineers often blame the instrument when a reading drifts. In practice the pipe is the real problem. A DN80 electromagnetic flow meter placed after a short elbow can lose repeatability because the flow profile is not stable. We have seen this on customer sites many times in Southeast Asia. Keep the upstream straight run at 10D and the downstream straight run at 5D for a DN50 magnetic flow meter. For a DN100 meter, 10D means 1000 mm of straight pipe before the sensor.
Pipe ID must match meter ID. A 1 mm step at a DN25 connection creates turbulence and shifts the reading. Use gaskets that do not protrude into the flow path. Center every gasket during flange alignment. Misalignment above 1.5 mm on a DN40 flange can load the meter body and shorten service life.
Grounding Alignments for Electromagnetic Flow Meters
Electromagnetic flow meters need a clean earth reference. Process noise enters the signal loop when grounding is weak. Use ground rings or grounding electrodes if the pipe is lined or made of plastic. On a metal pipe, connect the meter ground lug to both pipe flanges. On a non-conductive pipe, install ground rings before the meter. For a PTFE lined electromagnetic flow meter, ground rings are required. Water and wastewater plants in Latin America and the Middle East skip this step often.
Ground cable size matters. 6 mm2 copper is typical for DN15 to DN100. Keep the cable shorter than 5 meters where possible. Do not share grounding with motors or VFD cables. One water treatment plant in Peru had a DN100 electromagnetic flow meter with a jumping totalizer. The problem was a corroded grounding lug. Cleaning the lug and adding a 6 mm2 cable fixed the totalizer.
Coriolis Mass Flow Meter Installation Notes
Coriolis meters measure mass directly, but pipe strain changes the natural frequency of the sensor. Support the pipe within 0.5 meters of each flange on DN25 and larger units. Do not hang the meter on the pipe. Install isolation valves and a bypass line if the process cannot stop. Entrained gas causes mass flow error. Keep the inlet pressure high enough to prevent cavitation. A paint manufacturer in Vietnam solved bubbling errors by raising back pressure to 2.1 bar and moving the meter after the discharge pump.
For high viscosity fluids above 500 cP, keep velocity below 2 m/s to limit pressure drop. A DN50 Coriolis meter can measure up to 70000 kg/h for water based liquids. Temperature compensation uses a PT100 input for better mass accuracy.
Ultrasonic, Vortex, Oval Gear, and Thermal Mass Flow Meter Piping Tips
Clamp-on ultrasonic meters need a clean pipe surface and a fully developed flow profile. Avoid installing them downstream of double elbows. Vortex flow meters need the correct straight pipe and tight bore matching. Oval ge
_600x400.jpg)
Step by Step Installation Checklist
Check the pipe ID and schedule. Confirm straight run length for your meter type. Align flanges to within 1.5 mm. Install gaskets centered in the flow path. Check the flow direction arrow. Ground electromagnetic meters. Support Coriolis meter pipe. Flush the line before installing the sensor. Verify wiring with 4-20 mA HART signal. Record zero point after the pipe is full and the temperature is stable.
Common Field Failures We See
Most engineers skip this part. A food and beverage site in Thailand had a Coriolis meter drift at low flow. Pipe support was missing. Adding two pipe clamps restored stable density reading. A refinery in Saudi Arabia needed a vortex flow meter for steam with ATEX Zone 1 approval and proper earth bonding. The static discharge risk made grounding part of the safety loop.
Recommended Meter Selection by Application
Use an electromagnetic flow meter for water, wastewater, slurries, and chemicals with conductivity above 5 µS/cm. Use a Coriolis mass flow meter for oil, LPG, syrups, and high accuracy mass or density measurement. Use an ultrasonic flow meter for large line or temporary measurement. Use a vortex flow meter for steam and gas. Use an oval gear flow meter for diesel, fuel oil, and lubricants. Use a thermal mass flow meter for compressed air and biogas.
Silver Automation Instruments supplies DN15 to DN300 electromagnetic flow meters, DN15 to DN200 Coriolis mass flow meters, inline and clamp-on ultrasonic meters, vortex, oval gear, and thermal mass flow meters. All meters can be provided with 4-20 mA HART, pulse, or Modbus outputs.
FAQ
Why does an electromagnetic flow meter need grounding rings? Grounding rings provide a stable earth reference on lined or plastic pipes. Without them, process noise can enter the signal loop and cause unstable readings.
What straight pipe length does a vortex flow meter need? A typical vortex flow meter needs 15D upstream and 5D downstream. Some installations may need more if the upstream disturbance is severe.
Can a Coriolis meter be installed in a vertical pipe? Yes. Vertical installation helps keep liquid full and can reduce gas accumulation if flow is upward.
What is the minimum conductivity for an electromagnetic flow meter? Most electromagnetic flow meters need at least 5 µS/cm. Some high performance models can work lower, but 5 µS/cm is a practical site limit.
How do I send a flow meter inquiry? Send your pressure in bar, temperature in degrees Celsius, pipe size in DN, flow range, and fluid name to Silver Automation Instruments. Contact Tel: +86-25-68650347, WhatsApp: +86-25-52155837, WeChat: +86 15365082610.
Contact and Quote Information
Silver Automation Instruments supplies flow meters for Southeast Asia, Oceania, Latin America, Africa, and the Middle East. For a specific offer, send your pressure in bar, temperature in degrees Celsius, pipe size in DN, flow range, and fluid name. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. Website: flow-meter.com.au.
